Automated Wire DeReelers

The Enhanced and XL DeReelers are designed for high-speed processing and seamless integration into your production line.

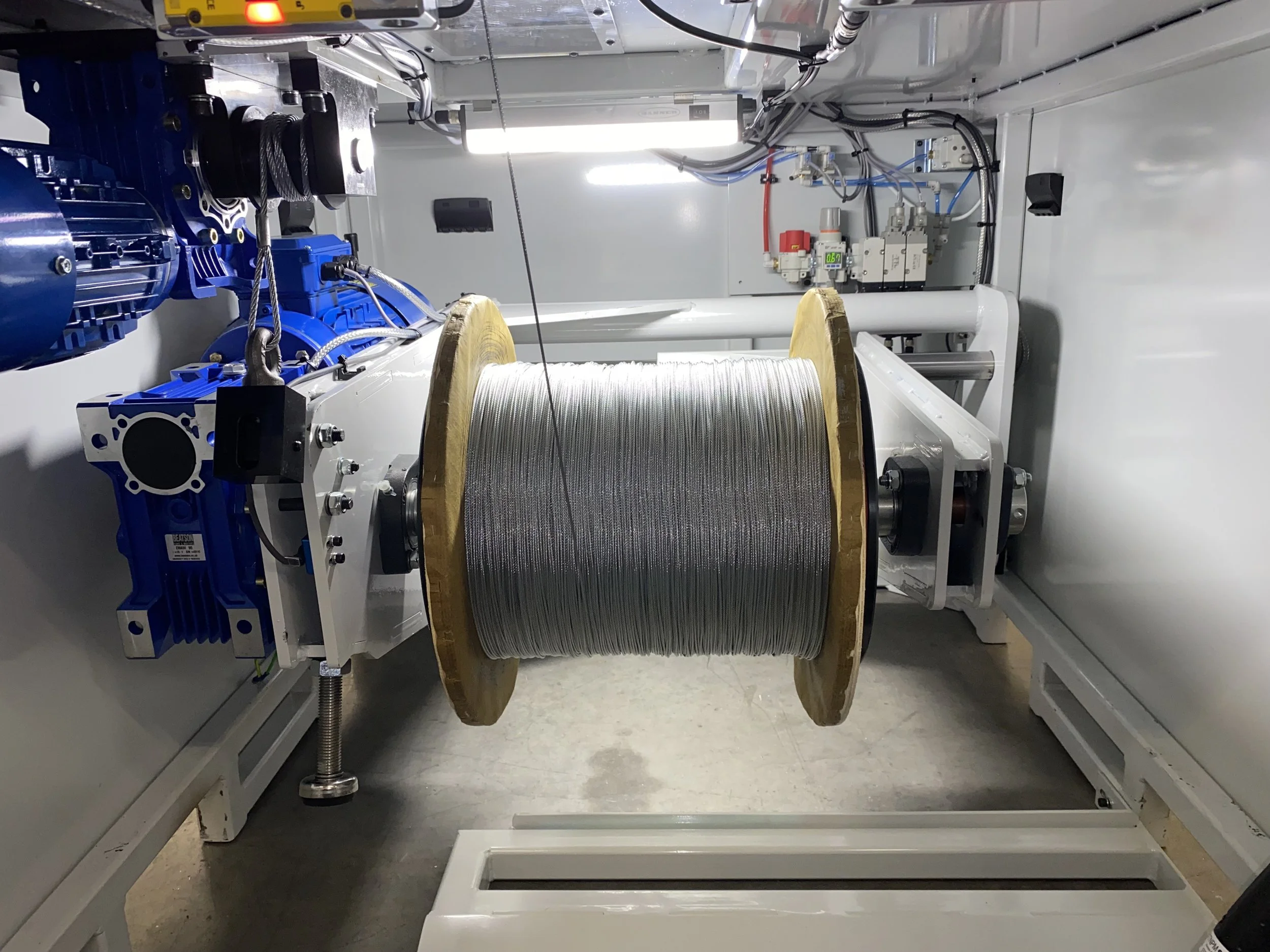

Our fully automated units featuring one-touch reel loading and unloading, capable of handling wire reels up to 300 kg in weight (with XL DeReelers handling up to 400 kg), and wire diameters ranging from 0.5 to 6 millimetres. With a production rate of approximately 1,500 units of 1-meter lengths per hour when integrated with our accompanying Wire Rope Annealing Machine, the Enhanced and XL DeReelers offer efficiency and accuracy. They can also be easily be integrated with other downstream production equipment like our Kick Out Tray, for a fully automated production cell.

ENQUIRE NOW

KEY BENEFITS

Speed – Up to 10 meters of accumulation for increased unreeling speed

Operator friendly – HMI interface with one touch reel loading and unloading

Safe and reliable – Protective safety interlock control

Features

User friendly HMI interface
- On-board diagnostics
- One touch reel loading and unloading
Integrated lifting points
- Automatic drum width sensing
End of reel detection
Compact Self-Tensioning Accumulator

See the Dereelrs in action

DOWNLOAD THE AUTOMATED WIRE ROPE DEREELER BROCHURE

Technical Data


     Enhanced DeReeler
    Details

    Machine dimensions
    H = 1310 mm (52")

      W = 1385 mm (54")

      D = 1149 mm (45")

    Machine weight
    Approx 750 kg (1653 lbs)

    Wire diameters
    0.5 mm - 6 mm ( 0.04" to 0.2") depending on material

    Power
    400V
3 Phase N + E
10 Amp current consumption

    Noise level approx.
    65 dB

    Touch screen size
    5"

    Compressed air pressure supply
    6 Bar - 1200 l/m

    Reel weight
    Min: N/A
Max: 300 kg (660 lbs)

    Reel diameter
    Min: 300 mm (12")
Max: 600 mm (24")

    Reel width
    Min: 80 mm (3")
Max: 410 mm (16")

    Operating mode
    Automatic


    XL DeReeler
    Details

    Machine dimensions
    H = 1410 mm (55")

      W = 1462 mm (58")

      D = 1420 mm (56")

    Machine weight
    Approx 900 kg (1984 lbs)

    Wire diameters
    0.5 mm - 6 mm (0.04" to 0.2") depending on material

    Power
    400V
3 Phase N + E
10 Amp current consumption

    Noise level approx.
    65 dB

    Touch screen size
    5"

    Compressed air pressure supply
    6 Bar
1200 l/m

    Reel weight
    Min: N/A
Max: 400 kg (880 lbs)

    Reel diameter
    Min: 450 mm (18")
Max: 700 mm (28")

    Reel width
    Min: 80 mm (3")
Max: 600 mm (24")

    Operating mode
    Automatic
